特征:
- 是适用于各种加工应用,包括镗铣床,铰孔,攻丝和研磨
- 材料:SUJ2
- HRC46度
- SK筒夹采用8度角设计,具有更大的夹持力度
- 公差:H7
- 内孔直径小于3mm,弹性变量0.25mm
- 内孔直径大于3mm,弹性变量0.5mm
- 精度:T.I.R.<0.005mm, UP级

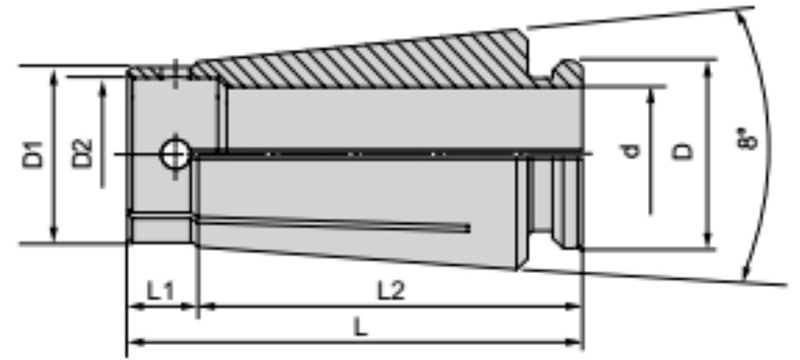

型号 | D1 | D2 | d | L | L1 | L2 |
UP-SK6 | 10.5 | 7.5 | 5.8 | 25 | 4 | 17.4 |
UP-SK10 | 15.5 | 12 | 9.8 | 30.5 | 5 | 21.3 |
UP-SK16 | 24.6 | 18.8 | 15.75 | 45 | 8 | 32 |
UP-SK25 | 35.6 | 28.9 | 25.4 | 57 | 8.5 | 43 |
型号 | D | 夹紧范围 |
UP-SK6-2 | 10.4 | 1.8-2.0 |
UP-SK6-2.25 | 2.05-2.25 | |
UP-SK6-2.5 | 2.3-2.5 | |
UP-SK6-2.75 | 2.55-2.75 | |
UP-SK6-3 | 2.8-3.0 | |
UP-SK6-3.5 | 3.0-3.5 | |
UP-SK6-4 | 3.5-4.0 | |
UP-SK6-4.5 | 4.0-4.5 | |
UP-SK6-5 | 4.5-5.0 | |
UP-SK6-5.5 | 5.0-5.5 | |
UP-SK6-6 | 5.5-6.0 | |
型号 | D | 夹紧范围 |
UP-SK16-3 | 24.63 | 2.75-3.0 |
UP-SK16-3.5 | 3.0-3.5 | |
UP-SK16-4 | 3.5-4.0 | |
UP-SK16-4.5 | 4.0-4.5 | |
UP-SK16-5 | 4.5-5.0 | |
UP-SK16-5.5 | 5.0-5.5 | |
UP-SK16-6 | 5.5-6.0 | |
UP-SK16-6.5 | 6.0-6.5 | |
UP-SK16-7 | 6.5-7.0 | |
UP-SK16-7.5 | 7.0-7.5 | |
UP-SK16-8 | 7.5-8.0 | |
UP-SK16-8.5 | 8.0-8.5 | |
UP-SK16-9 | 8.5-9.0 | |
UP-SK16-9.5 | 9.0-9.5 | |
UP-SK16-10 | 9.5-10.0 | |
UP-SK16-10.5 | 10.0-10.5 | |
UP-SK16-11 | 10.5-11.0 | |
UP-SK16-11.5 | 11.0-11.5 | |
UP-SK16-12 | 11.5-12.0 | |
UP-SK16-12.5 | 12.0-12.5 | |
UP-SK16-13 | 12.5-13.0 | |
UP-SK16-13.5 | 13.0-13.5 | |
UP-SK16-14 | 13.5-14.0 | |
UP-SK16-14.5 | 14.0-14.5 | |
UP-SK16-15 | 14.5-15.0 | |
UP-SK16-15.5 | 15.0-15.5 | |
UP-SK16-16 | 15.5-16.0 |
型号 | D | 夹紧范围 |
UP-SK10-2 | 15.6 | 1.75-2.0 |
UP-SK10-2.25 | 2.0-2.25 | |
UP-SK10-2.75 | 2.5-2.75 | |
UP-SK10-3 | 2.75-3.0 | |
UP-SK10-3.5 | 3.0-3.5 | |
UP-SK10-4 | 3.5-4.0 | |
UP-SK10-4.5 | 4.0-4.5 | |
UP-SK10-5 | 4.5-5.0 | |
UP-SK10-5.5 | 5.0-5.5 | |
UP-SK10-6 | 5.5-6.0 | |
UP-SK10-6.5 | 6.0-6.5 | |
UP-SK10-7 | 6.5-7.0 | |
UP-SK10-7.5 | 7.0-7.5 | |
UP-SK10-8 | 7.5-8.0 | |
UP-SK10-8.5 | 8.0-8.5 | |
UP-SK10-9 | 8.5-9.0 | |
UP-SK10-9.5 | 9.0-9.5 | |
UP-SK10-10 | 9.5-10.0 |
型号 | D | 夹紧范围 |
UP-SK25-16.5 | 35.7 | 16.0-16.5 |
UP-SK25-17 | 16.5-17.0 | |
UP-SK25-17.5 | 17.0-17.5 | |
UP-SK25-18 | 17.5-18.0 | |
UP-SK25-18.5 | 18.0-18.5 | |
UP-SK25-19 | 18.5-19.0 | |
UP-SK25-19.5 | 19.0-19.5 | |
UP-SK25-20 | 19.5-20.0 | |
UP-SK25-20.5 | 20.0-20.5 | |
UP-SK25-21 | 20.5-21.0 | |
UP-SK25-21.5 | 21.0-21.5 | |
UP-SK25-22 | 21.5-22.0 | |
UP-SK25-22.5 | 22.0-22.5 | |
UP-SK25-23 | 22.5-23.0 | |
UP-SK25-23.5 | 23.0-23.5 | |
UP-SK25-24 | 23.5-24.0 | |
UP-SK25-24.5 | 24.0-24.5 | |
UP-SK25-25 | 24.5-25.0 | |
UP-SK25-25.5 | 25.0-25.4 |
